Esjot 15 teeth Gearbox output pinionRef : ESJO00132A / 12122374
- Description
- Compatible motorbikes
- Questions and answers
DescriptionEsjot 15 teeth Gearbox output pinion
'%3e%3cpath%20fill='%23f1ab00'%20d='M.702%207.162l1.875%201.684%206.161-5.532L14.9%208.846l1.875-1.684L8.738-.053z'/%3e%3c/g%3e%3c/g%3e%3c/svg%3e)
Product details :
Features

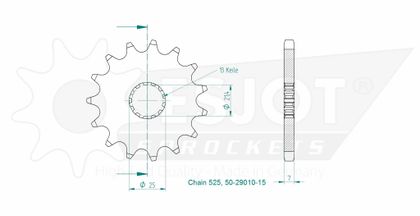

ESJOT Front Sprocket 50-29010-15 – 15 Teeth / Pitch 525
Replace your front sprocket with a robust and precise part designed for the final drive of modern motorcycles. This ESJOT sprocket, machined from 16MnCr5 steel, is intended for 525 pitch chains and is installed in the front position. Its natural finish and CNC machining ensure a consistent geometry for a well-guided chain and uniform tooth contact.
- Material: 16MnCr5 steel
- Teeth: 15
- Pitch: 525
- Position: front (countershaft)
- Manufacturing: CNC machining and precision broaching, 100% made in Germany
- Tolerances: concentricity and runout < 0.1 mm
Designed to meet high OEM standards, this sprocket is suitable for Trail/Adventure, Roadster, Sport/Racing, and Touring applications. Common application examples include: SUZUKI V-Strom 1050 XT, TRIUMPH Tiger 900 GT, HYOSUNG GT 650.
Whether you are preparing for a transmission change, a refurbishment after wear, or a gear ratio modification, this ESJOT front sprocket provides the strength and precision expected for a reliable and durable drive on-road or off-road.
Technical information :
Reference
ESJO00132A / 12122374
Type
Secondary tree
Position
Before
Material
Steel 16MnCr5
Not
525
Product name
Sprocket
TEETH
15
COLOUR
Natural
Units
Per unit
Compatible motorbikes
SUZUKI40 compatible models
GSR 600 ABS - 2007/2010GSX-R 600 - 1997/2016GSR 600 - 2006/2006GSF 650 S ABS Bandit (WVCZ) - 2013/2015 - 2013/2015GSX 650 F - 2008/2012GSF 650 BANDIT S - 2012/2012GSF 650 BANDIT S ABS - 2007/2011SV 650 ABS - 2007/2008SV 650 S ABS - 2007/2010GSX 650 F ABS - 2009/2016GSF 650 BANDIT ABS - 2007/2013DL 650 V-STROM ABS - 2007/2024DL 650 V-STROM XT ABS - 2015/2024SV 650 S - 1999/2010DL 650 V-STROM - 2004/2004 - 2006/2010SV 650 - 1999/2008GSR 750 ABS - 2012/2016GSX-S 750 ABS SPECIAL EDITION - 2019/2019GSR 750 - 2011/2016GSX-S 750 ABS - 2017/2021GSX-R 750 - 1998/2017GSX-8R - 2024/2024V-STROM 800 SE - 2024/2025V-STROM 800 DE - 2023/2025GSX-8S - 2023/2024GSX-S 950 ABS - 2021/2023DL 1000 V-STROM - 2002/2007GSX-S 1000 F ABS - 2016/2020GSX-S 1000 GT - 2022/2024GSX-S 1000 GX - 2024/2024GSX-S 1000 F - 2015/2016GSX-S 1000 ABS - 2015/2024GSX-R 1000 - 2001/2008GSX-S 1000 - 2016/2016KATANA - 2019/2020 - 2022/2025DL 1000 V-STROM XT ABS - 2018/2020V-STROM 1050 XT - 2020/2024V-STROM 1050 DE - 2023/2025V-STROM 1050 SE - 2024/2025V-STROM 1050 - 2020/2023
TRIUMPH30 compatible models
STREET TRIPLE 660 S ABS A2 - 2018/2022DAYTONA 675 - 2006/2012DAYTONA 675 R - 2011/2012DAYTONA 675 R ABS - 2013/2016STREET TRIPLE 675 R ABS - 2013/2016STREET TRIPLE 675 ABS - 2013/2016STREET TRIPLE 675 - 2008/2013DAYTONA 675 ABS - 2013/2016STREET TRIPLE 675 RX ABS - 2015/2016STREET TRIPLE 675 R - 2009/2013STREET TRIPLE 765 S ABS (HD04) - 2021/2021 - 2021/2021TIGER 800 XCA ABS - 2015/2020TIGER 800 XC - 2011/2013TIGER 800 - 2011/2013TIGER 800 XRX ABS - 2015/2020STREET TRIPLE 765 MOTO 2 - 2023/2023TIGER 800 XRT ABS - 2015/2020TIGER 800 XCX ABS - 2015/2020TIGER 800 XC ABS - 2011/2016STREET TRIPLE 765 R ABS - 2017/2024TIGER 800 ABS - 2011/2014TIGER 800 XR ABS - 2015/2020STREET TRIPLE 765 S ABS - 2017/2020STREET TRIPLE 765 RS ABS - 2017/2024TIGER 850 SPORT - 2022/2024TIGER 900 GT PRO - 2020/2022 - 2024/2024TIGER 900 RALLY PRO - 2020/2022 - 2024/2024TIGER 900 - 2020/2023TIGER 900 RALLY - 2020/2023TIGER 900 GT - 2020/2024
KAWASAKI7 compatible models
W 650 C FLAT BARS (EJ650C) - 2003/2006W 650 C HIGH BARS (EJ650A) - 1999/2002ZR-7 S (ZR750H) - 2001/2004ZEPHYR 750 (ZR750C) - 1991/1994ZR-7 (ZR750F) - 1999/2003NINJA ZX-7 R (ZX750P) - 1996/2003NINJA ZX-7 RR (ZX750N) - 1996/1999
HYOSUNG6 compatible models
GT 650 COMET - 2004/2007 - 2010/2010 - 2012/2012GT 650 COMET R - 2005/2007 - 2009/2010 - 2012/2012GT 650 RC (GT650) - 2018/2019 - 2018/2019GT 650 IR (GT650) - 2017/2017 - 2017/2017GT 650 I Naked (GT650) - 2017/2017 - 2017/2017GT 650 COMET S - 2006/2009
CAGIVA3 compatible models
V-RAPTOR 650 - 2001/2004RAPTOR 650 - 2001/20071000 NAVIGATOR - 2001/2005
YAMAHA2 compatible models
TDM 850 (4TX) - 1999/2001TDM 850 - 1991/1995
