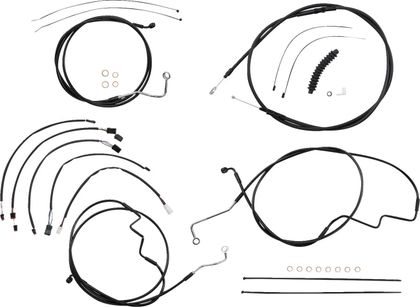

Magnum Shielding Cable Kit (Ref. 4861012) — Specifically designed for the installation of ape hanger handlebars, this kit includes everything essential to re-establish the clutch, throttle, and brake controls on a touring bike equipped with ABS. Black vinyl housings and a neat finish: a complete solution for relocating your control point on handlebars from 38 to 43 cm (15"–17") or with 2" risers.
- Throttles: throttle and idle cables, or pre-wired throttle-by-wire extensions depending on configuration.
- Clutch: mechanical cable or hydraulic flexible line depending on version.
- Braking: DOT-certified XR brake lines (compliant with FMVSS-106) made of reinforced stainless steel, nylon-coated for abrasion resistance and linear response.
- Included accessories: copper washers, fasteners, soldered connectors (-3 AN for easy installation) and fully finished wiring extensions for indicators and switches.
- Finishes: all fittings polished before plating; cables designed for low effort and good longevity, meeting OE specifications for fit and durability.
- Colour/Finish: black — housing material: vinyl. Compatible with ABS braking systems.
Ideal for Harley-Davidson touring bikes such as the Road King Special FLHRXS 114 (2022–2024), this kit facilitates the retrofit of high handlebars while maintaining a clean and functional installation.
