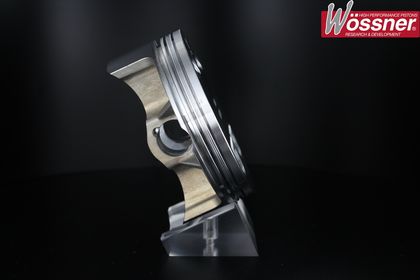

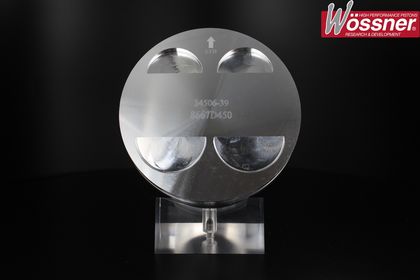

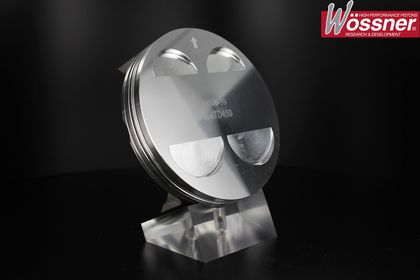

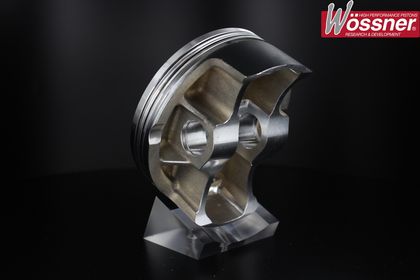

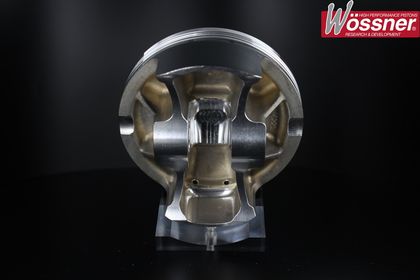

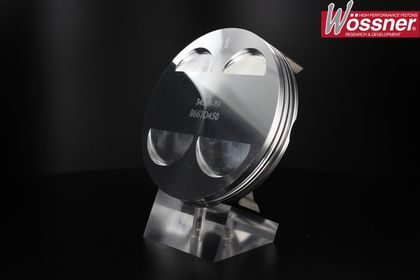

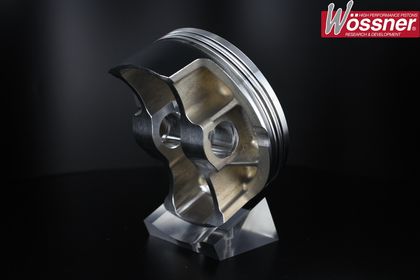

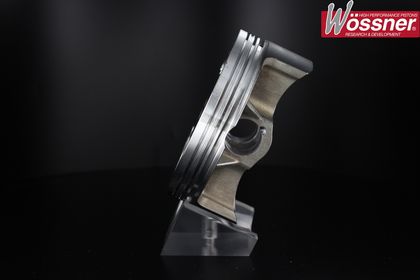

WOSSNER Forged Piston – Manufacturer Ref: 8667DC
Forged piston specially machined for quad applications, made in Germany by WOSSNER. Designed from forged aluminum, it features a friction-treated skirt to minimize wear at the bore and ensure uniform wear. Supplied complete with rings, circlips, and pin, it serves as a robust replacement part for restorations or engine revisions.
- Type: Forged piston
- Material: Aluminum
- Piston diameter: Ø 95.470 mm (indicated Ø: 95.47 mm)
- Bore diameter: 95.52 mm
- Compression: Standard
- Oversize letter: C
- Finish: Friction-treated skirt
- Supplied with: rings, circlips, and pin
This piston is aimed at quad owners and mechanics looking for a forged replacement part that meets the specified dimensions. Check engine compatibility and bore before installation. For optimal results, check piston clearance, timing, and proceed with installation according to manufacturer recommendations or entrust the operation to a professional.
- Common compatibilities: SUZUKI LT-R 450 QUADRACER SPECIAL EDITION 2WD (2011), SUZUKI LT-R 450 QUADRACER 2WD (2011), SUZUKI LT-A 450 KINGQUAD AXI 4WD (2010)
