SBS 5171 Round brake discRef : SBS00280A / 5171

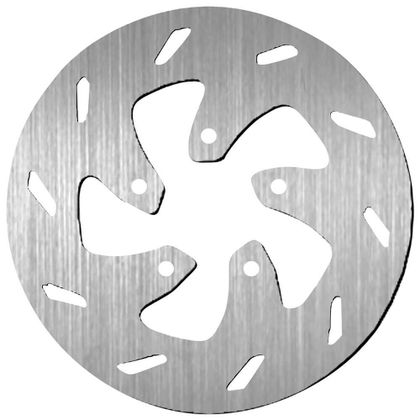

Round Brake Disc 5171 by SBS

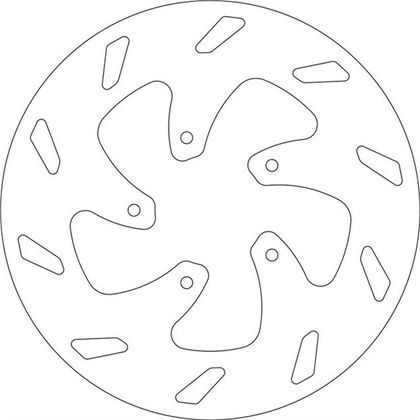

This round brake disc is designed for road use, with complete dimensions to facilitate replacement. Diameters and drilling specifications are provided to quickly verify mechanical compatibility before installation.

Design and Materials

• Outer diameter of 220 mm ensuring compliance with required dimensions during replacement.
• Inner diameter of 58 mm providing precise centring on the hub for stable fitting.
• Thickness of 4 mm maintaining the necessary space between pads and disc for correct adjustment.
• 5-hole drilling with a hole diameter of 6.5 mm facilitating alignment of fixings during installation.

Practicality and Features

• Designed for Road use to meet braking needs in traffic conditions.
• Detailed dimensions provided to check mechanical compatibility before installation.

Benefits

• OEM Reference 5205171100
• Compatibility specified by the manufacturer for the models listed below

Compatible with a selection of models including:

• PIAGGIO TYPHOON 125 (2016)
• APRILIA SR MOTARD 125 (2014)
• GILERA NEXUS 500 (2013)
