SBS 5178 Round brake discRef : SBS00283A / 5178

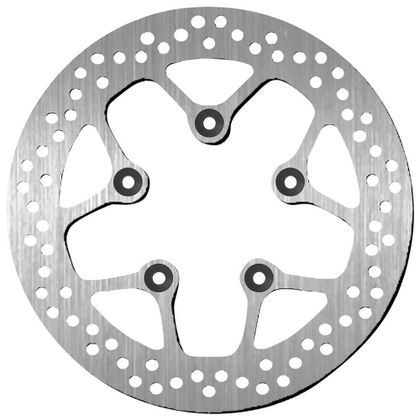

Round Brake Disc 5178 by SBS

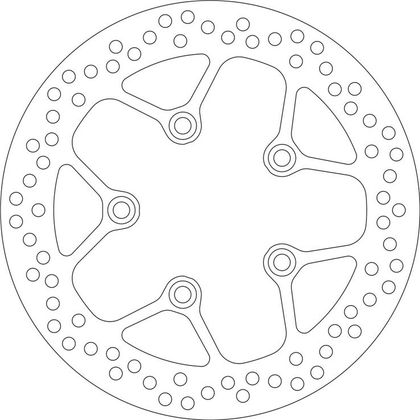

This round brake disc is designed for replacement and comes with the necessary technical specifications to verify fitment on your vehicle. Outer diameter 260 mm, inner diameter 87.5 mm, thickness 4 mm, 5 mounting holes, and hole diameter 10.5 mm to check mechanical compatibility before installation.

Design and Materials

• Outer diameter of 260 mm ensures compatibility with the original rotor for precise replacement
• Thickness of 4 mm to monitor the available space between the pads and reduce the risk of interference with the caliper

Practicality and Features

• Inner diameter of 87.5 mm facilitates centring the disc on the hub during installation
• 5 mounting holes with a hole diameter of 10.5 mm to confirm drilling compatibility and simplify installation

Benefits

• OEM reference 5205178100
• Top 3 compatible motorcycles listed below for quick verification if this disc suits your model

Compatible with a selection of models including:

• KYMCO AGILITY 125 4T S AC IE CBS E5+ 125 (2026)
• KYMCO AGILITY 50 4T NAKED RENOUVO 12" AC CARB E5+ 50 (2026)
• KYMCO AGILITY 50 4T 16" PLUS AC IE E5+ 50 (2026)
