NG Fixed Brake disc RoundPOLARIS 500 PREDATOR 500 - 2002 - 2013Ref : NGD00699A / 1024212

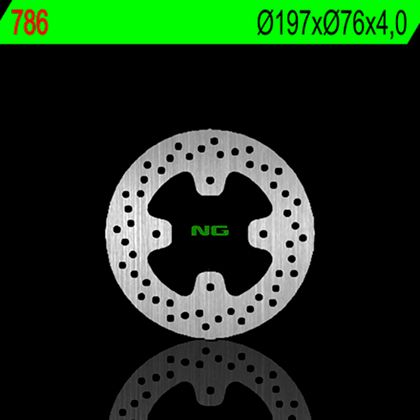

NG BRAKE DISC – Manufacturer Ref. 786

Fixed round disc designed for replacement on quads, manufactured by NG, a specialist in mass-produced braking components for original equipment. Designed to match the original specifications and allow for easy installation on models equipped with this rotor diameter.

• Type: Fixed round brake disc
• Outer diameter: Ø 197 mm
• Inner diameter: Ø 76.2 mm (Ø int/ext 76/197)
• Hole diameter: Ø 8.25 mm
• Thickness: 4 mm

This rotor features precise dimensions for direct replacement: thickness and hole pattern conform to the specified requirements. Ideal for maintenance interventions or when replacing due to wear, it installs on the compatible caliper without modification. Before installation, check the condition of the pads and the contact surface, adhere to the manufacturer's torque specifications, and perform a controlled bedding-in of the pads after installation.

Frequently compatible models:

• POLARIS PREDATOR 500 (2013 - 500 cm³)
• POLARIS PREDATOR 500 (2012 - 500 cm³)
• POLARIS PREDATOR 500 (2011 - 500 cm³)

To ensure compatibility, always compare the dimensions and hole pattern with your original disc before ordering.
