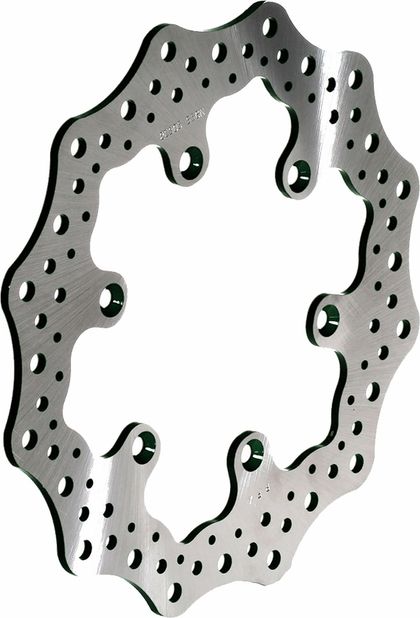

RFX Race Fixed Wave brake discRef : RFX01447A / 1128463

RFX Race Fixed Petal Brake Disc — Manufacturer's ref: FXBD2030555BK. Designed for off-road and motocross use, this RFX fixed petal disc features an outer diameter of 220 mm for generous braking surface, a thickness of 3 mm, and an inner diameter of 100.2 mm. Black finish for a sleek look and improved resistance to corrosion in non-stressed areas.

Thoughtfully designed with the terminology of pistons and pads, this disc prioritizes thermal dissipation and active cleaning of the pads: the wavy shape limits the accumulation of mud and debris while the ventilation holes Ø 6.5 mm help dissipate heat during repeated braking.

Main features:

• Laser-cut stainless steel for precise cutting.
• Heat treatment aimed at reducing premature wear of the pads.
• Comaxit coating on unworn surfaces for better corrosion resistance.
• Surface grinding with fine tolerance (0.01 mm) for a crisp braking response.
• Optimized CAD profile: reduced unsprung weight and petal design for effective cleaning.
• Dimensions: Ø ext. 220 mm / Ø int. 100.2 mm, th. 3 mm; holes Ø 6.5 mm.

Top 3 compatible motorcycles:

• KAWASAKI KX 500 (KX500E) 2003
• KAWASAKI KX 250 (KX250L) 2002
• KAWASAKI KX 125 (KX125L) 2002

A race-oriented disc that combines grip, machining precision, and a motocross look for demanding riders seeking a high-performance and visually refined replacement part.
