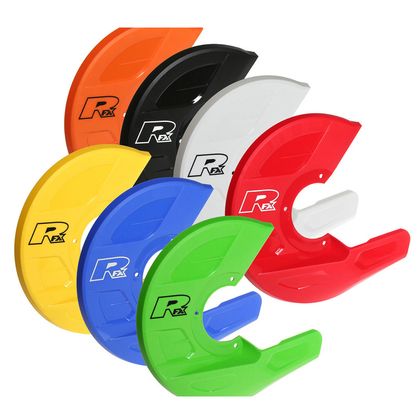

RFX Pro Disc and Caliper Guard (Black) Universal To Fit Disc Guard Mounts Schijfbeveiliging UniverseelRef: RFX01052A / 1110489001

RFX Pro Series Disc Guards help reduce brake disc damage by preventing rocks and roost from hitting and damaging the disc. RFX Disc guards also feature a wheel spacer fitment to speed up wheel changes whilst the design still allows the calliper to be cooled by air for improved braking.  Suitable for use with oversize discs.

 Features

• High strength plastic guard.
• Protects brake disc from rocks and roost.
• Accepts oversize 270mm brake discs.
• Allows air to cool the brake calliper unlike most OEM guards.
• Bracket replaces wheel spacer for quicker and easier wheel changes.
• Billet aluminium bracket construction.
• High stick 3M colour coded RFX decal.
• Multiple colour combinations available.
• Model specific bracket is required.

 Fitting Instructions

• Remove OEM disc guard, spindle nut and loosen spindle pinch bolts.
• Remove spindle and front wheel.
• Remove disc side wheel spacer and replace with new disc cover and mount.
• Re-fit wheel taking care to align the disc into the calliper.
• Insert the spindle and lossly tighten the spindle nut.
• With the bike on the floor and with the front brake on, compress the front forks to align the front wheel.
• Tighten pinch bolts and spindle nut.
